Forward Renderer

jaxCAD’s image renderer is designed for predictable forward rendering. It uses early-exit sphere tracing, screen-space silhouette reconstruction, finite-difference normals, Cook–Torrance GGX materials, soft shadows, and optional reflection and refraction rays.

Geometry and constraints remain JAX-native and differentiable. Rendered pixels are intentionally not an inverse-rendering or optimization API.

Scene and quality settings

Use Scene for camera, lights, and environment data and RenderSettings for the performance/fidelity trade-off:

from dataclasses import replace

from jaxcad.render import Camera, RenderSettings, Scene, render_scene
from jaxcad.sdf.primitives import Sphere

scene = Scene(
    Sphere(1.0),
    camera=Camera(position=(0, 1.5, 5), target=(0, 0, 0)),
)

preview = render_scene(scene, RenderSettings.draft((240, 320)))
final = render_scene(scene, RenderSettings.high_quality((480, 640)))

# Presets are immutable; override only what a scene needs.
mirror = replace(RenderSettings.balanced(), reflect_steps=64)

The low-level raymarch(sdf, ...) function remains available for compact notebook calls.

Each primary trace retains its closest approach to the scene. Rays that narrowly miss a surface receive screen-space coverage across RenderSettings.silhouette_smoothing pixels, which removes hard hit/miss outlines without restoring differentiable visibility or fixed-step tracing. Set the value to 0 when exact binary coverage is required.

Rendering modes

All panels below are produced by the forward renderer. Soft shadows stop as soon as they find an occluder, and reflection and refraction rays are enabled only when requested.

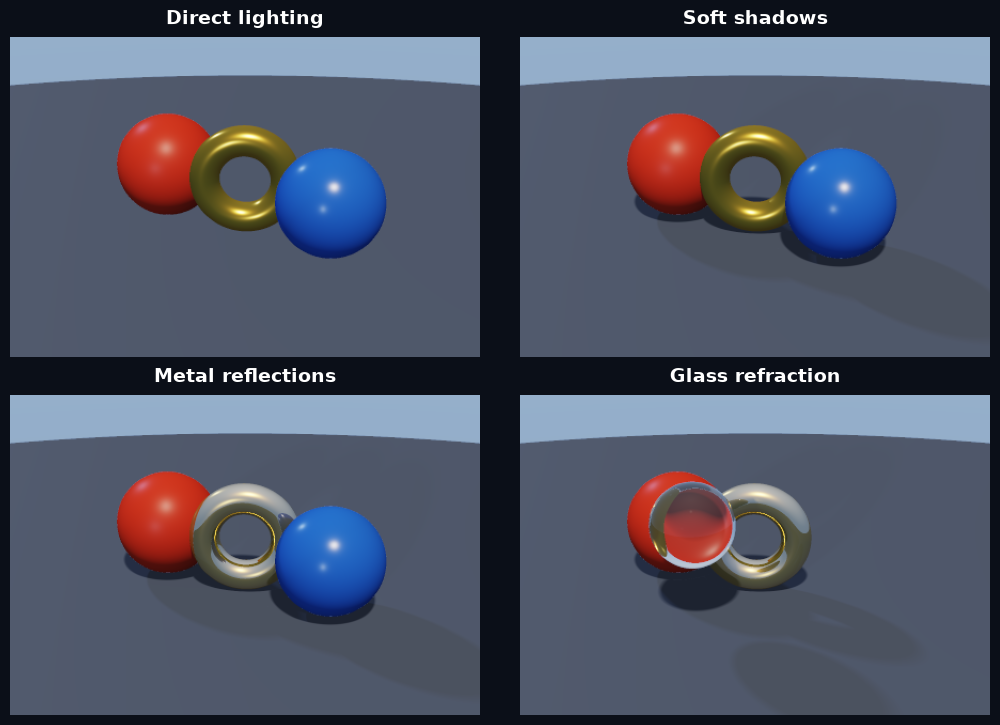

Direct lighting, soft shadows, metal reflections, and glass refraction

Quality presets

  • draft: shorter trace budgets, direct lighting, no secondary visibility, and one sample per pixel.
  • balanced: more trace and shadow steps with reconstructed silhouettes and 2×2 SSAA.
  • high_quality: tighter surface precision, more visibility samples, and 3×3 SSAA.

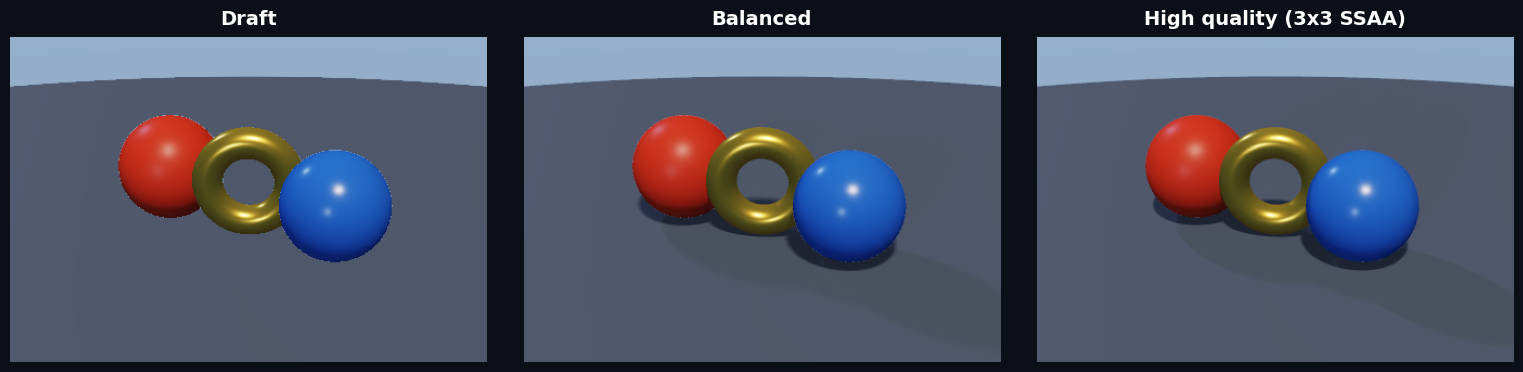

Draft, balanced, and high-quality forward renders

The presets are starting points rather than hidden modes. Every field is public, validated, and can be changed with dataclasses.replace.
